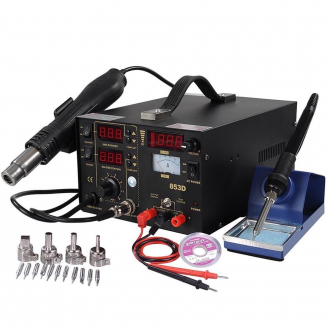

Soldering Station 3in1 Rework SMD Solder Hot Air Gun & DC Power Supply

$119.90
SKU:
SoldStn
Weight:
3.00 KGS
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share


Product Description

Iron Soldering Station 3in1 Rework SMD Solder Hot Air Gun & DC Power Supply

Package Includes:

  • 1x 3in1 Soldering Station Unit
  • 1x Hot Air Gun
  • 1x Soldering Iron
  • 2x DC Probe Cable
  • 1x Metal Stand
  • 1x Holder
  • 1x Sponge
  • 4x Nozzles (Ø5mm,Ø7mm,Ø10mm,Ø12mm)
  • 1x Desoldering Wick
  • 11x Iron tips(900M-T-B,3C,2.4D,1.2D,K,3.2D,2C,1.6D,4C,Two 900M-T-I)
  • 1x Manual

Features:

  • 3 in 1 (Soldering Station, Hot Air Rework Station and DC Power Supply)
  • Two LED digital displays to show precision temperature
  • One LED display to show the mobile RF signal and testing voltage
  • PID technology to enhance temperature stability, quick warming-up
  • PID microcomputer control, over-temperature, short circuit, open circuit, overload protections
  • Adjust the airflow and temperature control rotation easily
  • Intelligence self-detection function features safe personal operation
  • Automatically stop rotation when the temperature is less than 70°C
  • Handle with sensor switch features access operating mode when picks up or standby mode when lays down
  • Automatic cooling function for effectively prolonging the heater's life and protecting the hot air gun
  • ESD design of soldering iron to protect sensitive components
  • International standard heater for convenient use and exchange
  • High-quality resistance for durable use
  • Plastic holder for placing the hot air gun
  • Metal Stand for keeping the iron from flammable materials
  • Suitable for SOIC, CHIP, QFP, PLCC, BGA and temperature-sensitive components
  • Fits for heating shrink, drying, lacquer removal, viscidity removal, ice-out, pre-heating and glue soldering
  • CE approved

Specifications:



Hot Air Gun

Soldering Hot Iron

Power

800W

60W

Temp. Stability

+/- 1°C

+/- 2°C

Temp. Control

100-480°C

200-480°C

Airflow

120L/min(max.)

/

Brushless Fan

Gentle Wind

/

Tip Ground Impedance

/

‹ 2ohm

Tip of Ground Voltage

/

‹ 2mV

DC Power Supply

  • Output Voltage: 0-15V
  • Testing Voltage: 0-49.9V
  • Temp. Coefficient: ‹ 300ppm/°C
  • Protection Current: 1A
  • Load Stability: ‹ 0.01±2mV
  • Ripple dB: ‹ 1mvrms (Virtual Value)

*Please read the user's manual before use.
