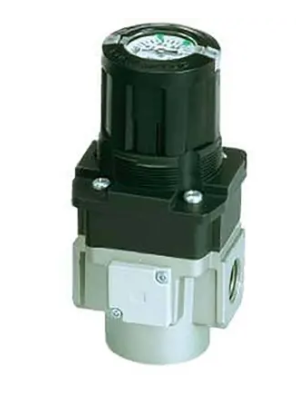

SMC ARG20-02G1H, Regulator w/Built-in Pressure Gauge - Post included

$100.00
SKU:
SMC ARG20-02G1H
Weight:
1.00 KGS
Shipping:
Shipping Included
Quantity:
Bookmark and Share


Product Description

SMC's Series ARG20-02G1H

SMC's Series ARG20 compressed air supply components feature integral, non rotating, pressure gauges inside a unique adjustable handle thereby eliminating the need to install separate pressure controls.

Offering excellent visibility, can be clearly seen and adjusted even when mounted in those difficult areas such as close to the floor, or even when side mounted high up a wall.

Performance can be set using simple limit indicators, which can be easily adjusted by removing the one-touch see through gauge cover.

Additionally, the mounting angle of the gauge can also be selected from four directions 0º, 90º, 180º and 270º in relation to the piping direction.

Designed for use:

with air, up to a maximum operating pressure of 1.0MPa,

with ambient fluid temperature range of between -5ºC to 60ºC

these innovative regulators have been designed to fully integrate with SMC's existing range of FRL units.





Retail $147.65
