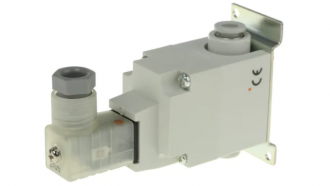

SMC 2/2 Pneumatic Control Valve Pilot/Spring VQ20 Series - POST INCLUDED

$120.00
SKU:
RS494-3311 SMCVQ21A1-5YZ-C6-F-Q
Weight:
0.50 KGS
Shipping:
Free Shipping
Quantity:
Bookmark and Share


Product Description

Brand New

SMC 2/2 Pneumatic Control Valve Pilot/Spring VQ20 Series

  • RS Stock No. 494-3311
  • Mfr. Part No. VQ21A1-5YZ-C6-F-Q

2-port Solenoid Valve, VQ20 Series


RETAIL $149.07



Compact and lightweight yet with large flow capacity, and long operating life
Quick response allows high frequency operation
Built-in one-touch fitting for easy pipe work
Dust and jet proof enclosure comes complete with mounting bracket

Typical applications include air-blow and blow-off work piece etc

SMC VQ21A1-5YZ-C6-F-Q valve, sol, VQ1000/VQ20/VQ30 VALVE

The VQ20/30 series is a pilot operated, two port multi-media valve. The series is compact and lightweight with a large flow capacity.

The VQ20/30s long life, high speed coil (up to 20 million cycles at 100cps for pneumatic use) along with its all plastic construction, make it an excellent choice for those who want high performance at a lower cost.

  • Fluid: Air/inert gas
  • Operating pressure range: 0.01-0.6MPa
  • Effective area (Cv/effective orifice): 7.2mm 2 -17.5mm 2 (0.4/?3-1/?4.8)
  • Coil rated voltage: 12, 24VDC; 100, 110, 200VAC
  • Response time: 5ms or less (VQ20); 20ms or less (VQ30)
  • Ambient/fluid temp: -10 to 50C
Attribute Value
Manufacturer Series VQ20
Mounting Style Stand-Alone
Function 2/2
Actuation Type Pilot/Spring
Solenoid Fitted Yes
Body Material Resin
Maximum Flow Rate 393NL/min
Solenoid Voltage 24V dc
Solenoid Power Consumption 2.5W
Minimum Operating Pressure 0.01MPa
Minimum Operating Temperature -10°C
Maximum Operating Temperature +50°C
Number of Ports 2/2
Maximum Operating Pressure 0.6 MPa
