HEADLIFT MATE - SET HEIGHT FRONT WHEEL STAND – SPORT BIKE RACE LIFT FORK TRIPLE TREE CLAMP STAND

 HEAD LIFT MATE PINS

Included with the Head Lift Mate is 5 pin sizes: 13/15/16.5/17 and 18mm diameter

EXTRA PINS

If you are uncertain as to the Pin size to suit your bike please contact us

For Motorcycles needing larger Head Pins we have a range of EXTRA pins:

19, 20, 21, 23, 24 27 and 28mm

Since 2006 Kaneg has been proudly serving Racers, Riders and Enthusiast alike.

To see other kaneg products visit us at

https://www.kaneg.com.au

KANEG SYDNEY PICKUPS

PHONE

Phil 0414968949

Rhys 0414712419

Email us @

sales@kaneg.com.au

Please Consider:

The HEAD LIFT MATE has a horizontal pickup to connect the pin into the hollow Head Stem as such, on some Motorcycles the Horizontal Arm may contact the Fairing Nose Cone.

From Experience, our MONGO MATE HEAD LIFT works best with Kawasaki’s and Ducati Panigali’s, BMW S1000RR, Yamaha FZ6R, THIS LIST MAY NOT BE EXCLUSIVE

Without modification the HEAD LIFT MATE may not work the following motorcycles (this list is not exclusive):

KAWASAKI'S and standard Headlift’s generally aren't compatible as the Stand Arm can contact the Fairing

We recommend the KAWASAKI Mongo Mate Headlift to avoid Fairing damage

Requires removal of fairing Nose cone or Front Guard

2013 > ZX6R and 636

GSXR1300 Hayabusa

TL1000S/R

2004/07 CBR1000RR

Horn and Steering Damper needs removal

We recommend the 675 Mongo Mate Headlift

Triumph 2006 12 Daytona/Street Triple 675

Horn to be removed

Daytona 600

2003/06 CBR600RR

2004/07 CBR1000RR

20013/14 CBR500

Remove ram air intake

CBR600 F3

Requires temporary moving of brake line bracket in order to insert pin (T30 torx bolt)

S1000RR

S1000R

HP4

R9T

Remove Brake manifold or replace with aftermarket brake lines.

2011/15 ZX10R

2013 Ninja 1000

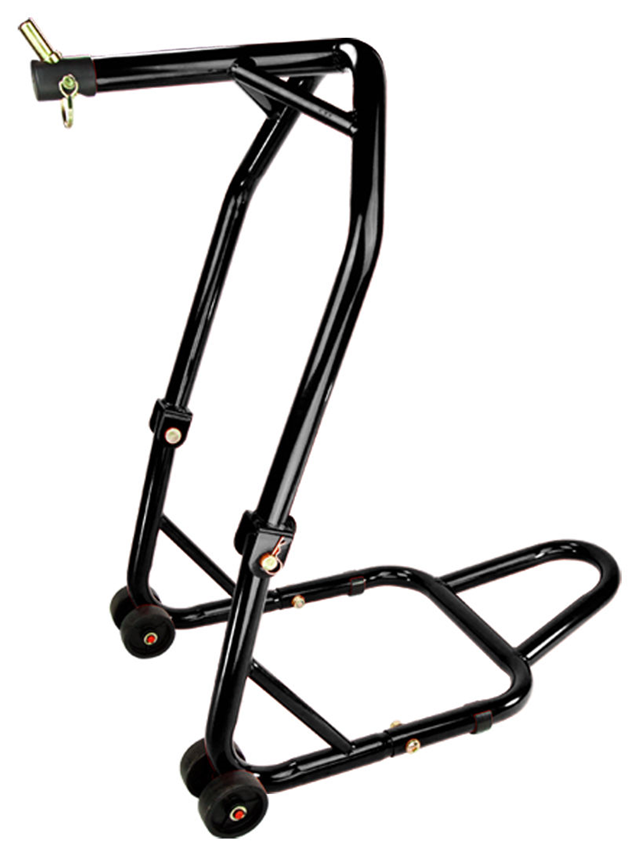

The Head Lift Mate

Quick and easy to assemble our Market proven and robust professional racing paddock is Manufactured from 32mm steel tube for strength with 4 wheels to provide stability.

To transport the Headlift Mate the stand comes in a KNOCK DOWN FORM so when disassembled it doesn't take up much Trailer space.

At 7kg our Stand is robust and powder coated with galvanised fittings stand will give years of reliable service.

Kaneg head lift stands are stable and easy to use.

Always engage a Rear Stand before using the Headlift Mate

Engage your KANEG Headlift Mate into the head stem hole in the yoke (triple tree), to lift the Motorcycle front wheel and forks.

When engaged the front wheel and forks can be easily removed.

Pins can be supplied to accommodate most motorcycles. The head lift front stand is quick and easy to assemble.

Assembly instructions are available on our website.

All KANEG stands come with a 12 month warranty.

These stands universally fit most sports bikes: Aprilia, BMW, Ducati, Honda, Hyosung, Kawasaki, KTM, MV Agusta, Suzuki, Triumph, Yamaha and more.

 Please note:

Front stands must always be used in conjunction with a KANEG rear stand and only on a level and stable surface.
