NEW:

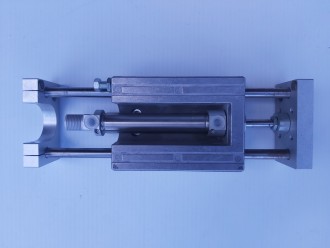

Festo Pnueumatic Linear unit Part no SLE-20-70-KF-A-G

https://www.festo.com/cat/en-gb_gb/data/doc_ENUS/PDF/US/SLE_ENUS.PDF

RETAIL $687.00

The linear unit SLE is a combination ofa guide unit and a standard cylinder.The cylinder moves a flange plate.The modular system allows forindividualised end-positioncushioning and end-position sensingsolutions.

USED

Festo Pneumatic Cylinder 20mm Bore, 70mm Stroke, DSNU Series, Double Acting

• RS Stock No. 136-6634
• Mfr. Part No. DSNU-20-70-PPV-A

https://au.rs-online.com/web/p/pneumatic-roundline-cylinders

DSNU Series Roundline Cylinders - Adjustable Pneumatic Cushioning

Festo DSNU series round pneumatic cylinders with adjustable pneumatic cushioning at both ends of the actuator barrel. Featuring a stainless steel piston rod within a 3 component system that provides excellent running performance and long service life. These double acting pneumatic actuators have dual connection ports for compressed air to be applied for advancing and retracting the piston rod in a linear motion. An extensive range of accessories makes it possible to install the DSNU cylinders virtually anywhere.

Adjustable Pneumatic Cushioning

The DSNU PPV type adjustable cushioning pneumatic cylinders are equipped with a special cushioning piston as an extension to the main piston. This pneumatic cushioning builds up an air cushion to absorb energy in the end positions, building up and exhausting air in a targeted fashion.. This energy absorbing method makes these cylinders ideal for medium to heavy loads and high speed applications.

Features and Benefits

Conforms to ISO 6432 providing standardised metric mounting dimensions
Stainless steel piston rod with threaded connector
Wide range of stroke length and bore size variants that can be configured to suit a broad range of applications.
Long service life
Double acting operation

How do I mount the pneumatic cylinder?

The DSNU series pneumatic round actuators conform to ISO 6432 standards allowing them to be mounted in any position to suit the required application. The ISO 6432 standard establishes metric mounting dimensions for cylinders providing interchangeability of commonly used hydraulic and pneumatic cylinders. Optional mounting accessories provide further flexibility allowing the cylinder to be attached with a swivel bracket for free movement, foot mounted for support under high loads or combined with other actuators to give a wider range of movement.
