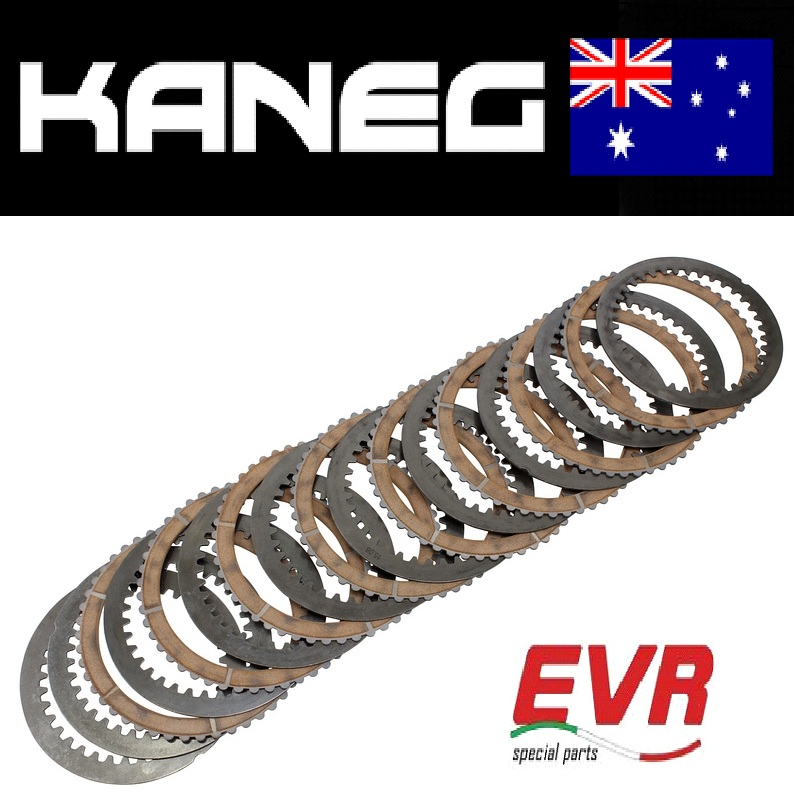

EVR Z48 - 48 tooth: Ducati Dry Slipper Clutch Kit incs Steel discs and stainless steel linings with sintered metal coating.

Suits the CDU-Z48K Basket,

see SKU: EVR Z48K to order the basket

Post Included

EVR 48 tooth 38mm pack height kit is designed to fit all Dry Clutch Ducati’s from 1990 on.

Steel discs and stainless steel linings with sintered metal coating

The spherical shape of the 48 notches, allows a better distribution of the forces, giving a longer Plate life up to 4 times the original.

Apart from its longer life, the kit`s low weight and sophisticated technology ensures better acceleration,

significantly less startup picking and reduced mechanical clutch noise.

The discs are the same quality as those used in Moto GP and Super bike racing.

Sintered metal pad set, suitable for 48 tooth coupling kit ZU-E210

Scope of supply:
8 x cover disc (2.5 mm)
7 x steel discs (2 mm)
3 x domed steel disc (1.5 mm)

The Clutch basket is available upon order

Please note: choose carefully as the Clutch Kit is a non-return product.

Installation order for clutch kit ZU-E210


Inside Out
1. 2 mm steel plate
2. 2 mm steel plate
3. 2.5 mm sintered disc
4. 1.5 mm curved steel plate (curved part facing outwards)
5. 2.5 mm sintered disc
6. 1.5 mm curved steel plate (curved part facing outwards)
7. 2.5 mm sintered disc
8. 2 mm steel plate
9. 2.5 mm sintered disc
10. 2 mm steel plate
11. 2.5 mm sintered disc
12. 2 mm steel plate
13. 2.5 mm sintered disc
14. 2 mm steel plate
15. 2.5 mm sintered disc
16. 1.5 mm curved steel plate (curved part facing outwards)
17. 2.5 mm sintered disc
18. 2 mm steel plate


Make sure that the groove of the discs are all in alignment during installation!


A total of 18 discs / clutch pack total thickness 38.5 mm
8 x sintered discs 2.5 mm
7 x steel plates 2 mm
3 x curved steel plates 1,5 mm
