2013 - 2016 BMW S1000R Centre Lift Mate
BMW S 1000 R (1st generation), March 2013 – July 2016
BMW S 1000 R (2nd generation), January 2016 to July 2020
BMW S 1000 R (3rd generation), January 2021 +
Post included SA - TAS

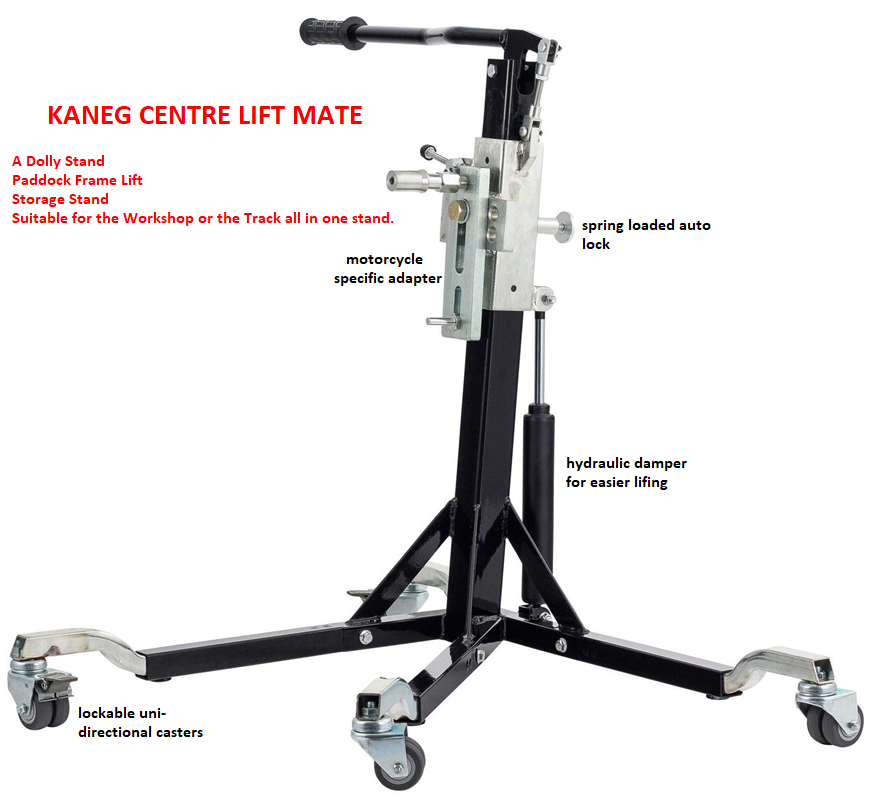

KANEG CENTRE LIFT MATE
a market proven professional centre lift stand
NOW WITH A HYDRAULIC DAMPER TO MAKE LIFTING EASIER
Please see the Photo, this Adapter suit this frame configuration, if your frame is different the Adapter doesn't fit.
A Dolly Stand, Paddock Frame Lift and Storage Stand suitable for the Workshop or the Track all in one stand.
Our CENTRE LIFT MATE comes with the ADAPTER to suit
Needed:
T50
M8 Allen Key
Blue Threadlock
Torque Wrench set to 60Nm
Since 2005 Kaneg has been proudly serving the Motorcycle Racer, Rider and Enthusiast alike.
We are in Sydney and Perth for that urgent pickup.
We race with BEARS, St George Motocycle Club and the PCRA so make a point of catching up
The KANEG Centre Lift Mate is not only functional but it's a great looking piece of kit, go on impress your mates and showcase your passion.
The compact construction maximises the available floor space, so more Toys per meter a great compromise.
A must where your garage has a limited space as the KCLS can manoeuvre your ride into a tight space.
About Kaneg’s Centre Lift Mate:
Supplied with a bike specific Adapter.
The Adapter is a work of Art: manufactured from Stainless Steel, not cheaper galvanised black steel
The Mate Adapter connects as a frame-lift stand to lift your motorcycle vertically.
Supplied with Adjustable height feet, to use as a fixed static Workshop Stand.
Supplied with multi-directional Casters to convert the Stand into a Motorcycle Dolly, the casters allow you to wheel your bike into a corner of the garage for storage or just to save space.
The Casters allow you to rotate your motorcycle in its length, so if your bike is 1.80 in total length the bike will turn in that approximate circular area.
Great for use at the Track, the Kaneg Centre Lift Mate does away with front and rear stands.
With your Bike on Kaneg’s Centre Lift Mate you can complete almost any job like;
The ideal repair and service and cleaning stand, with both bike wheels off the ground and full bike access.
Safe and rigid enough so you can completely strip down the Bike whilst on the stand.
Engine maintenance, with the correct procedure you can even remove the engine. Speak to us as to how to complete this procedure.
Wheel removal and change over, so you can save money by taking your Rims to have new tyres fitted.
Complete Fork and Shock removal and Suspension changes.
All Servicing, cleaning and maintenance and upkeep; Chain clean - Oil changes
Some bike Fairing may require modification to engage the stand, this can be the case with Race Glass.
Perfect for wintering your bike as the bike can be left permanently on the our stand.
Other info on Kaneg’s Centre Lift Mate:
Patience and time taken (about 45 mins) to correctly set your KANEG CENTRE LIFT MATE will pay dividends as a once only setup is necessary.
Quick and easy to assemble, assembly instructions are available upon request.
The kaneg centre lift stand is suitable for motorcycles up to 300kg and lift the bike vertically
Lift height is approximatley 15cm to get to this height above ground depends upon how your bike is setup and suspension relaxation.
The stand has Stainless Steel, Galvanized Steel and Powder Coated Steel components, our KCLM Stand will give years of reliable service.
Is a knockdown frame system for easy transportation.
Automatic Spring-Loaded locking system, so when your bike is on the stand the Lock System ensures the bike stays in the raised position and to lower the stand is a simple matter of releasing the Locking knob.
It’s as Simply as installing;
The frame adapter sleeve onto your bike, this may require you to reverse the engine bolt.
Install and adjust the stand backing plate
Adjust the adapter pin and sleeve and balance and you are ready to go.
Again depending upon your Ride, you may have to tinker with the adjuster to have the bike level, be patient.
The Legs are adjustable to broaden or reduce the stand footprint, the broader the stand footprint the more stable the stand and bike.
With 4 double dolly wheels for a smooth use and added stability and manoeuvrability
Each Wheel is a Twin Rubber buffer wheel, with a locking wheel to secure the stand into place when you are working on the bike.
Assembley
Comes ready for you to assemble and easy disassembly.
For convenience our stands can easily be disassemble to take less space for transport or to store away.
Bolt tightening torques for mounting the frame sleeve:
M8 Screw = 70 Nm
M10 Screw = 80 Nm
M12 Screw = 120 Nm
Consider Lock-Tighten all bolts.
